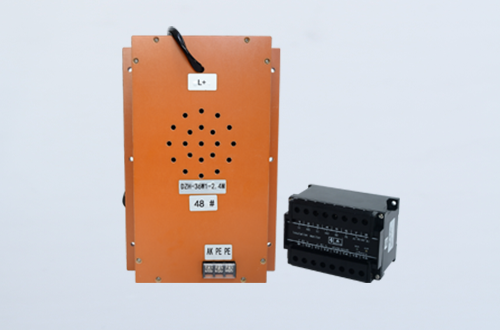

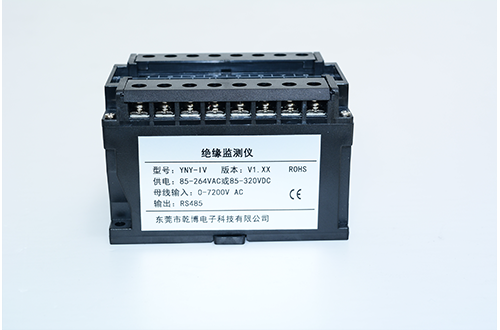

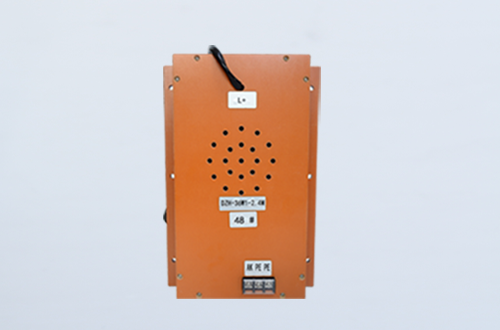

Product introduction:
YNY - Ⅳ suit is an insulation monitoring suit. The instrument is interlocked with the circuit contactor or the auxiliary contact of the circuit breaker to realize the separation of the insulation monitor from the power grid when the motor circuit is powered on. When the line is powered off, the insulation monitor automatically starts to monitor the insulation of the line. Although the insulation monitor only monitors after the bus is powered off, considering that it is directly connected to the high voltage bus, the insulation monitor is also equipped with a coupler, It is used to protect the line and insulation monitor host
Product parameters:
Rated working voltage V 1500~30003000~72007200~11500
Impulse withstand voltage KV 20kV, 40kV, 60kV
Internal resistance KQ> 1200 ，> 2400 ，> 4700
Input frequency range 10~400Hz, 10~400Hz, 10-400Hz
Power supply range 85~264VAC or 85~320Vdc
Rated power ≤ 5W
Mechanical dimension Installation hole size 110x75x72.5mm (length x width x height) 100 * 65mm (35mm guide rail installation is allowed)
Insulation resistance measurement range 50K&Omega~ 10MΩ You can set
Insulation resistance measurement error± 10kΩ (0~ 100kΩ)，± 10%(100kΩ~1MΩ)
Level I insulation alarm threshold 10~2000kΩ You can set
First-level alarm recovery threshold 10~2400kΩ You can set
Secondary insulation alarm threshold 50k&Omega~ 5MΩ You can set
Secondary alarm recovery threshold 50 k&Omega~ 7MQ settable
Insulation resistance response time≤ 20s(Ce-2uF);& le; 80s(Ce=80uF)
Measure signal voltage< 24V
Measured internal resistance ≥ 250 k&O

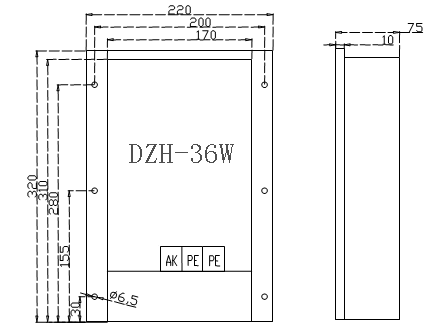

Product dimension drawing is as follows:
The product connecting line is as follows:
Bus access diagram：

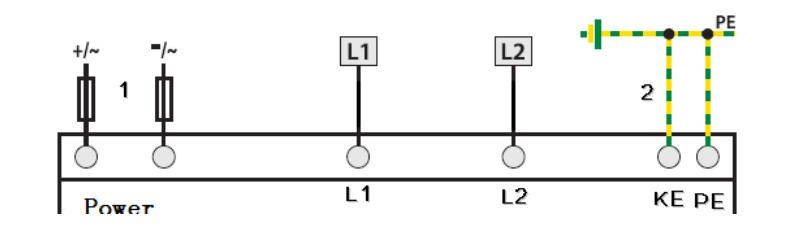

Wiring diagram of built-in resistor：

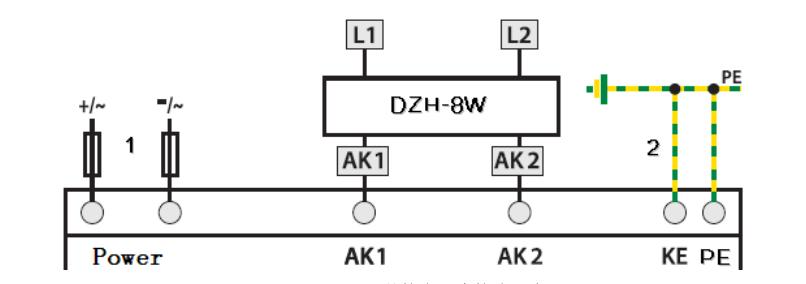

Wiring diagram of 1500~3000V external resistance box：
Product application:
The product is applicable to other industries such as mine and frequency converter.
mine
frequency converter
